Product Overview

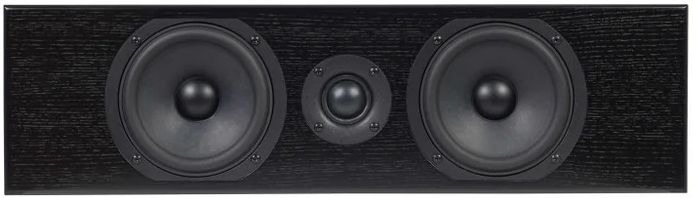

The Bison Center is designed to project a gigantic soundstage that balances micro nuances, truthful voicing and a commanding presence. And since it shares the same DNA as the other Bison series speakers, it also offers an immersive musical dimensionality and incredible extension.
Design Highlights
Custom engineered 5.25 inch drivers
Custom engineered 1.3 inch tweeter
Handmade crossovers
Artisanal cabinet construction
Available in White Oak, Black Walnut, Satin White and Black Ash
Magnetic grille
Artisanal Cabinet Construction
The cabinet design features a lock-mitered, monocoque cabinetry with full cross bracing. Lock mitering produces a cabinet 4 times as rigid as V groove assembly and provides a substantially larger contact point for gluing. Expansion and contraction can occur over many decades without any sonic degradation.
Tweeters
The Bison series employs a brand new, custom-designed 1.3-inch laser etched textile soft dome tweeter that is neodymium magnet activated. This tweeter extends up to 30kHz and plays low enough to contribute to the midrange band, creating a seamless and captivating interplay.
Custom Woofers
The Bison series features custom woofers that are unique to Totem with the integration of critical proprietary elements and magnetics. These woofers are thoroughly engineered by Totem and then manufactured to the strictest standards to meet our especially unique parameters by the finest raw driver suppliers in the world.
Rear Ported Design
The double or single rear ports use the energy generated by the movement of the woofer to not only enhance the bass response of the Bison series but fine tune this bass response to be in perfect phase anywhere one listens to them in a room. These ports are carefully tuned in conjunction with the cabinet size, volume, and an internal critical labyrinth design to eliminate smearing at lower frequencies.
Connectors
Two sets of high conductivity gold plated connectors efficiently capture the incoming signal for superior speaker performance and allow traditional, bi-wire, or even bi-amplification options. They accommodate a variety of connection options such as bare wire, banana plugs, and spades.
Handmade Crossovers
Bison Center crossovers don’t require many parts because of the synergy between the customized drivers, but the components are the world’s best. Totem's crossovers aren’t built on PCB’s because the laminated conductive tracks are weak and inconsistent. Instead they are secured to a thin piece of fiberboard or insulated polymers and components are mechanically crimped together because it simply sounds better. When they must solder, they choose WBT Silver Solder, the purest in the industry.
