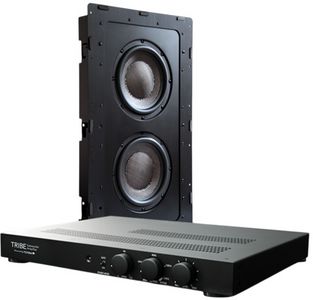

Totem Acoustics Tribe Architectural 8" In-Wall Subwoofer with Amplifier

Totem Acoustics

Model #:

Tribe In-Wall Sub Double 8

Model #: Tribe In-Wall Sub Double 8
1828217
Totem Acoustics
$99,999.00

At a Glance

Product Dimensions 23.5"h x 14.44"w x 3.78"d

Designed to seamlessly integrate with the Tribe Series and immerse the listener in a totally realistic 3D sonic experience, the Tribe Sub In-Wall Double 8 redefines exactness, speed and musicality. For easy use under any conditions, it performs with astonishing presence, no matter the size of your space.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

The Tribe Sub In-Wall Double 8 incorporates 2 active drivers with stiff ballistic carbon fiber cones. The double drivers have been designed to function without passive radiators permitting a much smaller footprint and grill opening.

Two Double 8 subwoofers can be connected to one Tribe Amplifier if they are wired in parallel

Must be affixed to wood studs, not aluminum

Rack ears and fully magnetic paintable white metal grill included

Useful Documents
User Manual
Specification Sheet
Specifications

General Specs

ColorWhite
Depth (in.)3.78
Width (in.)14.44
Height (in.)23.5
Outdoor ApprovedNo
SeriesTribe Architectural
Color/Finish NameWhite
Speaker TypePowered Subwoofers
Firing DirectionForward
Amplifier Output (Watts)500
Frequency Response26 Hz – 200 Hz
WirelessNo
Smart CompatibleNo
Wifi CapableNo
Airplay CapableNo
Bluetooth CapableNo
Subwoofer SizeUp to 8"

Tribe Amplifier

Amplifier Specs

Maximum continuous power:500 watts
Distortion:<0.1% @ Maximum Rated Output
Frequency Response:20Hz - 200Hz
Input Impedance:>20 kΩ

Front Panel

Level Control:Adjusts Input Signal Level/Volume
Low Pass Filter:Variable from 40Hz - 120Hz, Bypass when turned completely to the right
Phase Control:0° - 180° continuously variable
Power Mode:On/Auto Switch
Logo Power Indicator:Red in standby and Blue when active, fading after 30 seconds

Rear Panel

Line In Connectors:1 Pair RCA
Line Out Connectors:1 Pair RCA
Output Connectors to Sub Module:1 Pair Binding Posts
Mains Voltage Connector:100-200 V / 220-230 V - Auto Sensing
Mains Voltage Fuse Holder:T5AL, 250 Volt

Rear Panel Switches

Model Select Switch:Tribe In-wall Sub 8 - select SUB, Tribe In-wall Sub 12 - SUB12

Dimensions

Overall Dimensions incl. Feet (w x h x d):17" x 2.25" x 14" / 43.18 x 5.715 x 35.56 cm
Width with Rack Ears:19" / 48.26 cm

Weight

Net weight:6.8 kg (15 lbs.)
